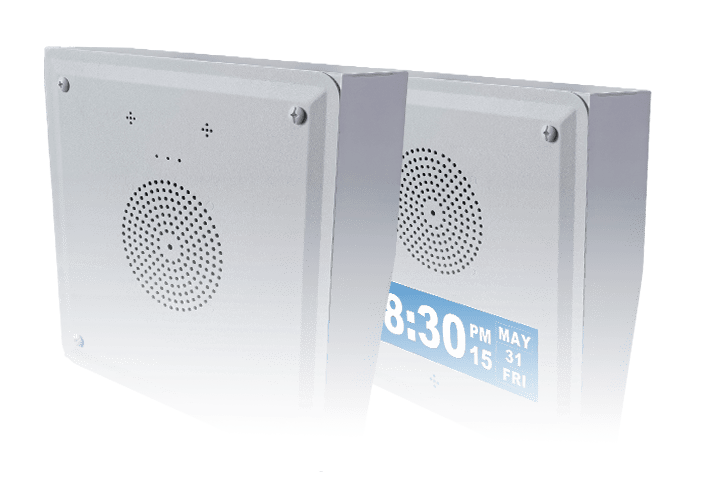

SQ10 Series
The Next Generation SIP-Enabled Speakers
Download Datasheet
SIP
ONVIF
PoE (802.3at)
Microphone
Event Scheduler
Clock System (SQ10-T)
Customizable Display Text (SQ10-T)
Caller Info Display (SQ10-T)

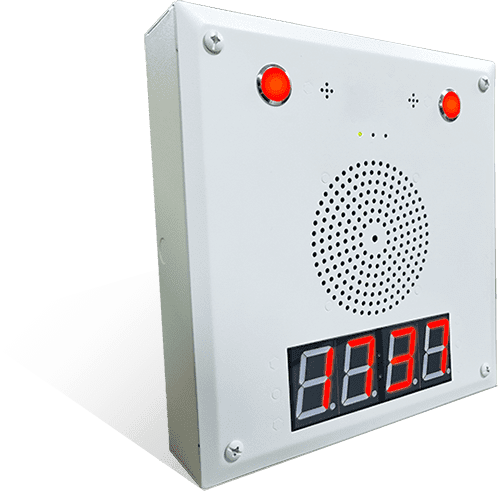

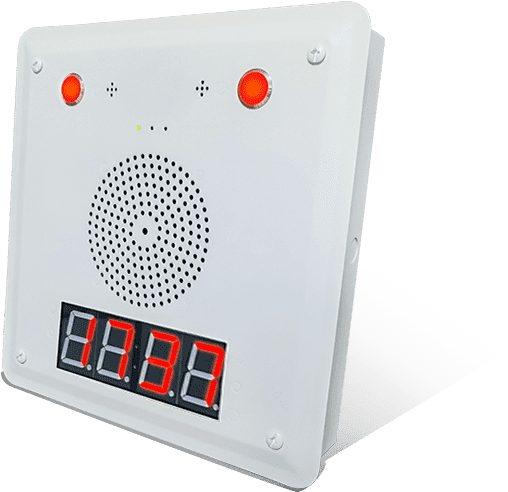

Versatile Mounting Options
The SQ10 series supports various wall-mounting methods, including vertical installation and angled mounting. When installed at an angle in higher positions, it enhances sound coverage and makes the screen content on the SQ10-T easier to view.

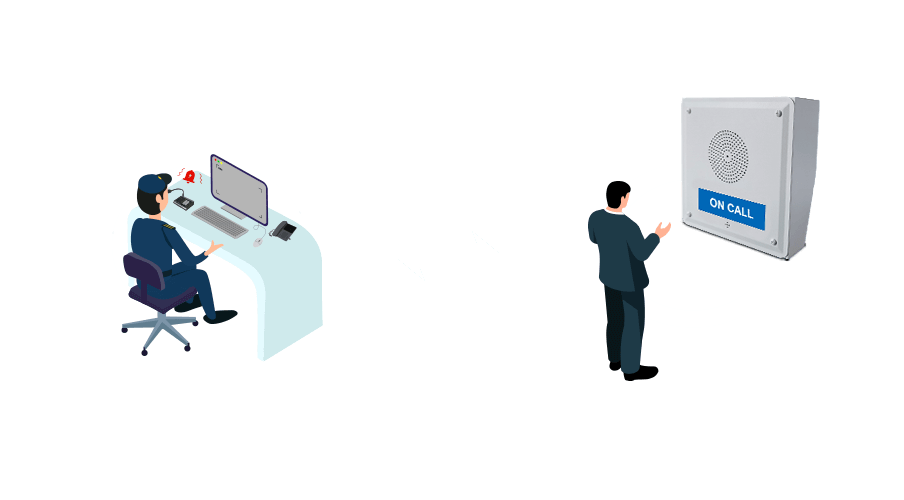

Talkback Feature
Equipped with a built-in microphone, the SQ10 series enables two-way communication. Users needing assistance can directly connect with security, ensuring timely responses.
Routine Notification
For regular activities such as school schedules, events, or meal times, the SQ10-T can be programmed to play audio at specific times, with the screen displaying relevant information to ensure clear communication.

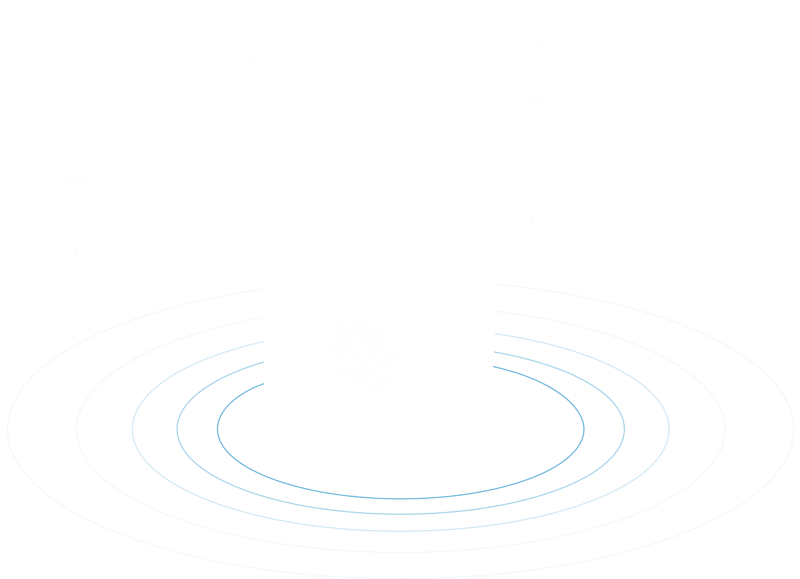

Emergency Alarm & Relay Linkage
The SQ10-T’s LCD screen displays crucial information during emergencies such as intrusions, lockdowns, or fires. When activated by staff, the screen will display information, and it can also be connected to alarm lights for enhanced visibility and attention.
Call Info Display
Administrators can configure the SQ10-T to show incoming caller numbers and names for easy reference. It also supports precise number-matching settings, allowing trigger preconfigured text display.
SQ10 Series Models
| SQ10-B | SQ10-T | |
|---|---|---|
| Build-in Microphone | ||
| LCD Screen | ||
| Speaker Component | 4.5" Full Range Driver Unit | |
| Max Sound Pressure Level | 101dB | |
| Sensitivity | 91dB/1m/1W | |
| Call Button | 2x Keys + 2x Key LEDs | |
| Dry Contact | Max AC125V-1A/DC60V-1A | |
| Power Input | PoE IEEE802.3at /DC24V-2A | |
| Audio Codecs | G.722, G.711 A-law, G.711 U-law, G.729 | |
| Approvals | EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, FCC Part 15B Class B | |
