Ei Series Network Safety Intercom
Open a new era of intelligent intercom
Ei Series
Ei Series Safety Intercom is available in four models designed to address the needs and requirements of various applications and installation types. All models deliver full-duplex communication and secure access control for your VoIP system. Ideal for any setting such as commercial facilities, schools and universities, medical facilities, warehouses, and retail establishments.
Ei-D05

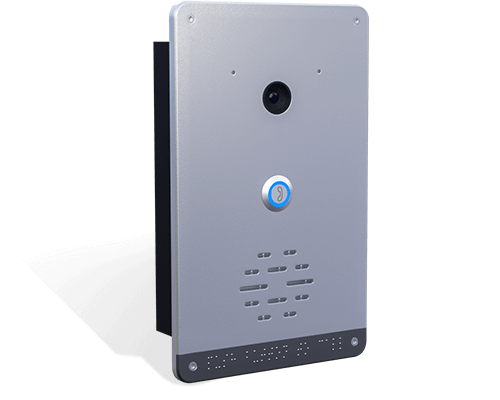

Ei-V05

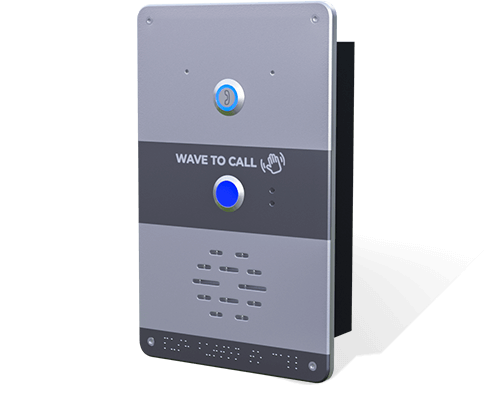

Ei-W05
Ei-A05
Installation
Flush Mounted

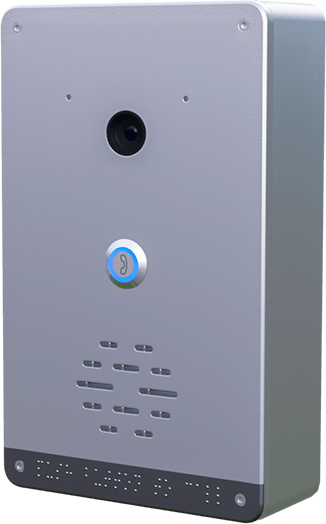

Surface Mounted
Peripheral Integration
Specifications
| Item | Specs | Ei-V05 | Ei-A05 / Ei-D05 / Ei-W05 |
|---|---|---|---|
| Speaker | Drive Unit | Φ40 full frequency drive unit | |
| Sensitivity | 96±3dB/1M/1W | ||
| Distortion | <1% | ||
| Amplifier | 5W Single Channel D-class | ||
| Rated Power | 8Ω 5W | ||
| Frequency Range | 100Hz - 20KHz | ||
| Acoustics | Mono | ||
| Microphone | -36±2 dB | ||
| Audio Compression | Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus | |
| Music Streaming | MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or stereo | ||
| Video | Camera | 1280*720@20fps, 640*360@20fps | N/A |
| Video Codec | H.264 | N/A | |
| Network | Network Interface | 10/100Mbps, PoE IEEE802.3at | 10/100Mbps, PoE IEEE802.3af/at |
| Protocols | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH | ||
| Administration | Configuration | Web interface or auto provisioning server | |
| Provisioning method | MQTT IoT Protocol | ||
| Mechanical Properties | Memory | 128MB RAM, 256MB Flash | |
| Power input | PoE IEEE802.3 at or DC 12V-2A | PoE IEEE802.3 af/at or DC 12V-1A | |
| Material | Corrosion-resistant aluminum | ||
| Color | Silver | ||
| Weight | 500g | ||
| Dimension | 162*100*44mm | ||
| Environmental | Installation | Indoor/Outdoor | |
| Operating temperature | -20°C ~ 50°C (-4°F ~ 122°F) | ||
| Storage temperature | -40°C ~ 70°C (-40°F ~ 158°F) | ||
| Humidity | 10% ~ 95% RH Non-condensing | ||
| Approvals | EN IEC 62368-1:2020+A11:2020 EN 55032:2015/A11:2020/EN 55035:2017/A11:2020/ENIEC61000-3-2:2019/EN61000-3-3:2013/A1:2019 FCC Part 15B |
||
